EPSCAB – THE NEXT EPSOLUTION FROM EPSILON

Maximum comfort, total protection

The Epscab command centre meets the highest standards: all-weather protection and perfect all-around comfort.

This cabin guarantees the best possible safety and offers variable control options – hydraulic servo-controlled or electric.

The Epscab solution can be applied to the M, Q and S Series of Loaders, Forwarders, Skidders and Chipper cranes. Contact us today to find out how the Epscab can be used with your crane.

EPSCAB HYDRAULIC

Cabin with hydraulic servo control

All hydraulic functions routed inside crane column via rotary distributor
External hose package on column with electric cables
High-quality single- and dual-circuit control valves for fixed-displacement pump operation or single-circuit design for variable-displacement pump operation mounted in seven sections on crane column
Cabin lift vertically adjustable by 1100 mm; ON/OFF control via switch in cabin
Stabiliser control ON/OFF via electric switch on cabin operator terminal
PVG32 stabiliser valve mounted under protective cover on slewing cylinder
Comfort package consisting of seat with air suspension, RDS radio with CD player, two speakers, interior lighting, windscreen wipers, protective windscreen shutter, adjustable armrests, seat heating, engine start/stop feature, speed +/- (fully cabled to crane base)
LED lights on cabin as standard
Cabin painted in RAL 9003, side door in RAL 9005
Front and side doors as standard
Optional: weighing systems
Optional: HYDAC vibration dampers for main boom and slewing
Optional: yellow warning light on cabin roof
Optional: water heating system with external water hose on column or WEBASTO diesel heating system (DH)
Optional: air-conditioning system operated via additional hydraulic function in combination with variable-displacement pump
Optional: one or two additional hydraulic functions on stabiliser valve; ON/OFF control from cabin

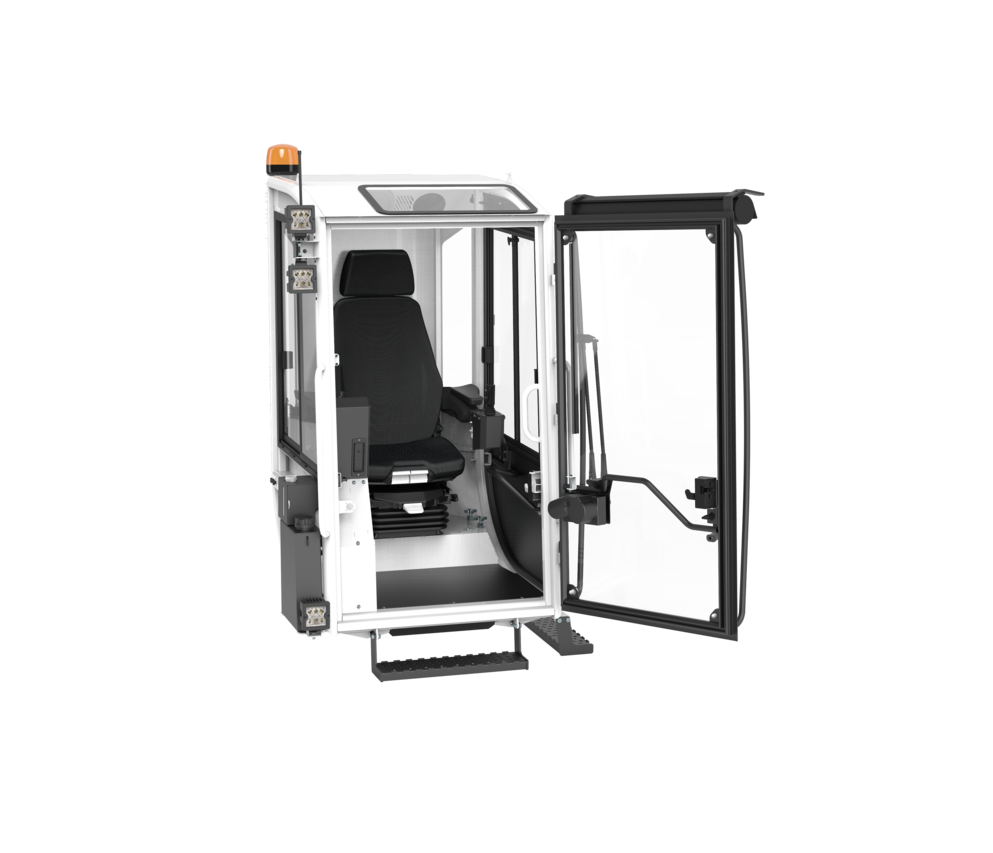

EPSCAB ELECTRICAL

Cabin with electric servo control

All hydraulic functions routed inside crane column via rotary distributor
External hose package on column with electric cables
High-quality combination of control valves comprising Parker L 90LS and K220 in single-circuit design for variable-displacement pump operation mounted in seven sections on crane column
Cabin lift vertically adjustable by 1100 mm; ON/OFF control via joysticks in cabin
Stabiliser control ON/OFF via joysticks in cabin
Stabiliser valve mounted under protective cover on slewing cylinder
Comfort package consisting of seat with air suspension, RDS radio with CD player, two speakers, interior lighting, windscreen wipers, protective windscreen shutter, adjustable armrests, seat heating
Engine start/stop feature, speed +/- (fully cabled to crane base)
LED lights on cabin as standard
Cabin painted in RAL 9003, side door in RAL 9005
Front and side doors as standard
HYDAC vibration dampers for main boom and slewing as standard
Optional: weighing systems
Optional: yellow warning light on cabin roof
Optional: water heating system with external water hose on column or WEBASTO diesel heating system
Optional: air-conditioning system operated via additional hydraulic function in combination with variable-displacement pump
Optional: one or two additional hydraulic functions on stabiliser valve; ON/OFF control from cabin
Optional: cabin lift position monitoring system (KLP)
