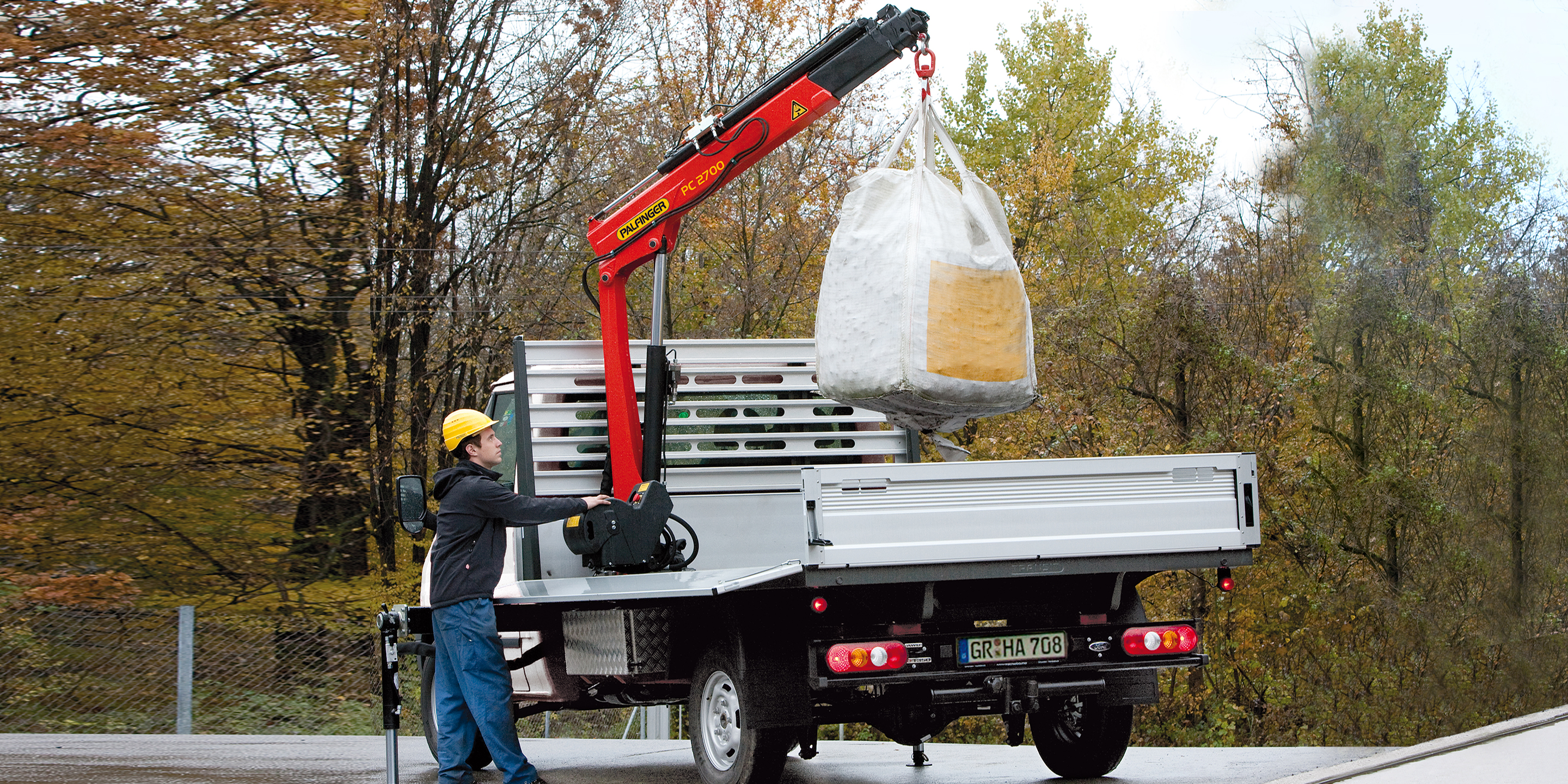

PC 2700 Compact

Product group: small

Compact lightweight solutions between one and four metre tonnes with real PALFINGER power

  • High value retention thanks to KTL coating
  • Optimum protection thanks to internal oil ducts in the extention cylinders
  • Load holding valves prevent the crane boom from dropping
  • Extended range of applications thanks to the optional radio remote control and cable winch"
KTL Radio Remote Control
Specification
Max. lifting moment 2.6 mt
Max. lifting capacity 2000 kg
Max. hydraulic outreach 5.0 m
Max. manual outreach 6.0 m
Slewing angle 325°
Slewing torque with 1 gear 0.3 mt
Fitting space required (std) 0.40 m
Max. operating pressure 200 bar
Dead weight (std.) 216 kg
Width folded 0.77 m

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
