Specification
Max. lifting moment 2.5 mt
Max. lifting capacity 990 kg
Max. hydraulic outreach 6.4 m
Slewing angle 370°
Slewing torque with 1 gear 0.3 mt
Stabilizer spread (std) 3.3
Fitting space required (std) 0.45 m
Max. operating pressure 250 bar
Dead weight (std.) 374 kg
Width folded 0.77 m

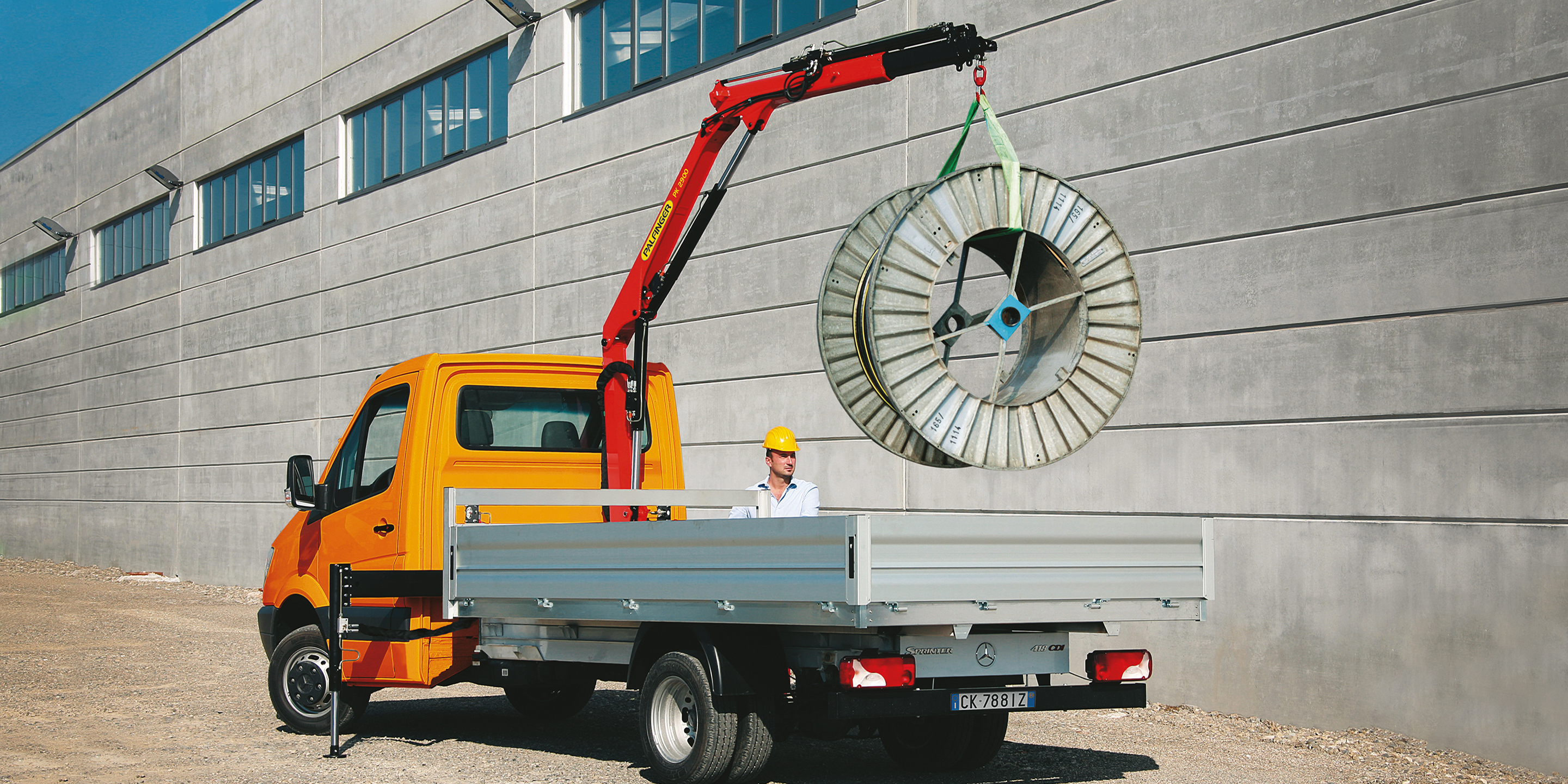

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
