PK 3400 Performance

Product group: small

Versatile small cranes with optimised power-to-weight ratio for lightweight commercial vehicles

  • High outreach with up to four hydraulic extensions
  • Optimised dead weight
  • Small overall width for use in inner city areas
  • High value retention due to KTL coating
KTL Radio Remote Control
Specification
Max. lifting moment 3.1 mt
Max. lifting capacity 990 kg
Max. hydraulic outreach 9.7 m
Slewing angle 370°
Slewing torque with 1 gear 0.4 mt
Stabilizer spread (std) 3.3
Fitting space required (std) 0.53 m
Max. operating pressure 250 bar
Dead weight (std.) 447 kg
Width folded 1.90 m

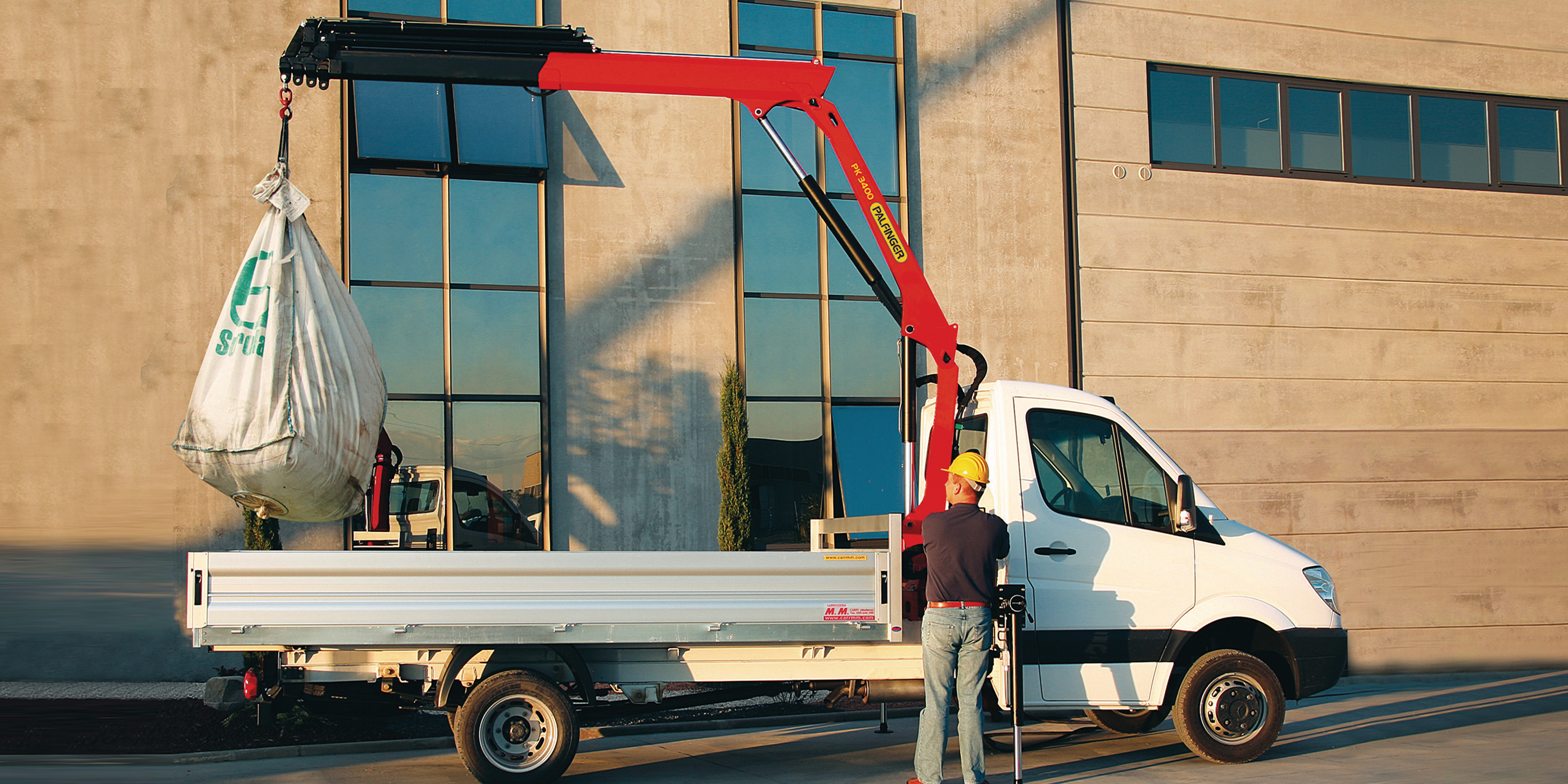

Cranes shown in the leaflet are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
