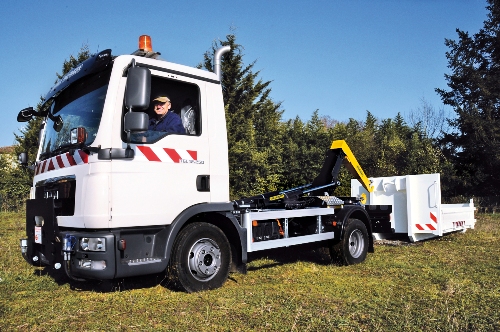

Telescopic T20

PRODUCT GROUP: HOOK LOADER

SUITABLE FOR TRUCKS UP TO 26T GVW

FEATURES

The Telescopic T20 allows the use of containers of different lengths. It also offers the opportunity to load a draw-bar trailer.  The Telescopic hook loaders are dual-cylinder units offering increased tipping capacity.  Constructed with the Palfinger design and build quality you can rely on.

All models come with full 3 year Warranty.

BENEFITS

  • Multi-application hook loader
  • Increased tipping force due to dual-cylinders
  • Less wear on the bearings due to less horizontal forces
  • Low transport height
  • Soft landing – reducing shock to both truck and bin
  • Comfortable and ergonomic
  • Maintenance free bushes
  • Easy to operate



telescopic t20


Unit length
(mm)		 Container max. length
(mm)		 Container min. length
(mm)		 Transport height
(mm)		 Weight
(kg)		 Tipping angle
(°)
5600 6401 4877 255 2500 50
5900 7006 5182 255 2550 48

telescopic t20 diagram
